Vandal proof pictogram with emergency light USB-C to JST SR connector

Vandal proof solution with JST SR cable for easy connection with the TSA7000 4G.

Two holes ready for the placement of the aluminum blind rivet for extra layer of vandal proof. JST SR socket placed center on back of the pictogram. It is required to drill a hole in the center of the location and 2 holes af 2.5mm twist drill bit for metal. The back side also includes a surface mounted for easy and quick installation with ultra strong 3M adhesive.

Placement
Select an appropriate spot for installing the pictogram.

Mounting
Drill the mounting hole with a minimum diameter of 6.5 mm in the center of the selected location and 2 holes with 2.5mm twist drill bit for metal.

Order part.no. 900-0012-004

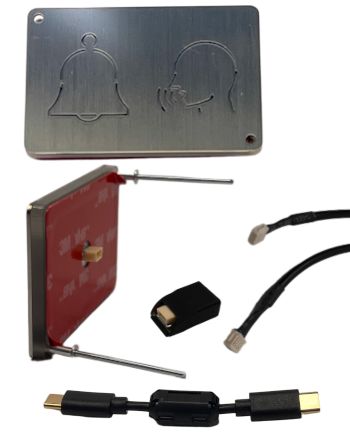

Package content

Pictogram with emergency light, featuring a centrally positioned JST SR socket on the back and two pre-drilled holes for blind rivet installation
USB-C to JST SR connector
3 meters JST SR cable
10 cm USB-C cable
3M VHB Surface Cleaner
Extra 3M VHB adhesive
3 pcs. of Aluminum Blind Rivet
